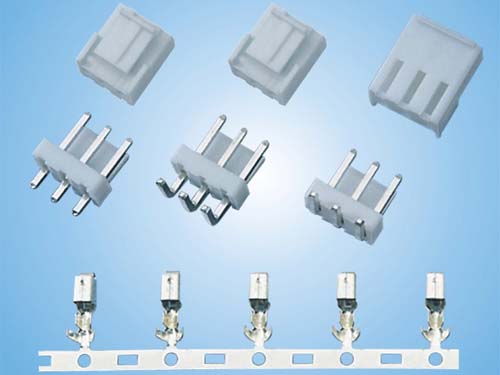

VH spacing strip connector

Technical parameters:
Spacing: 3.96
Number of lines: 2-15
Applicable wire gauge: AWG # 22~# 18
Rated voltage: 250V DCAC (effective value)
Rated current: 7.0A
Withstand voltage value: 1000V AC (effective value)
Working temperature: -25 ℃~+85 ℃
Insulation resistance: ≥ 1000M Ω
Contact resistance: ≤ 0.02 Ω
Applicable printed board thickness: 1.6mm
Material:
Shell: Nylon 66 UL94V-0
Needle holder:
1. Base: Nylon 66 UL94V-0
2. Pin: Brass
Terminal: Phosphor bronze
