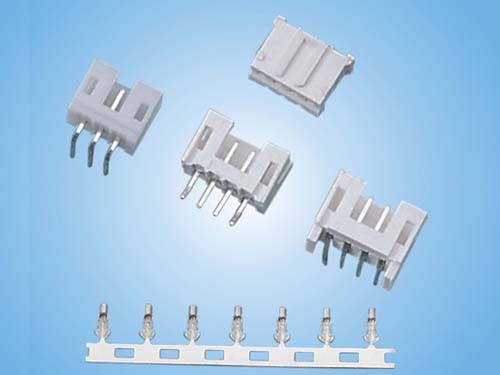

PH spacing strip connector
Technical parameters:
Spacing: 2.0
Number of lines: 2-16
Applicable wire gauge: AWG # 30~# 24
Rated voltage: 250V DC/AC (effective value)
Rated current: 2.0A
Withstand voltage value: 800V AC (effective value)
Working temperature: -25 ℃~+85 ℃
Insulation resistance: ≥ 1000M Ω
Contact resistance: ≤ 0.02 Ω
Applicable printed board thickness: 0.8mm~1.6mm
Material:
Shell: Nylon 66 UL94V-0
Needle holder:
1. Base: Nylon 66 UL94V-0
2. Pin: Brass
Terminal: Phosphor bronze
