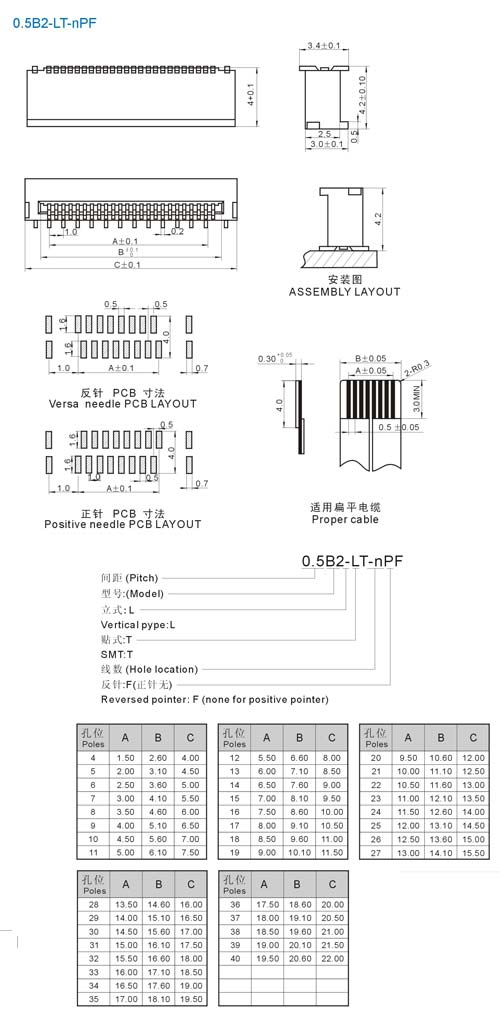

Your position: Home ->  Main Products ->  FPC/FFC Connector ->  0.5mm Pitch FPC connector(SMD,top entry w/o ZIF)

SPECIFICATIONS
Poles: 4～40
Voltage rating : AC,DC,200V(50HZ有效值)
Current rating: 0.4A,AC,DC
Withstand voltage: 500V AC/minute
Working Temperature: -25℃～+ 85℃
Insulation resistance: ≥500M Ω
Contact resistance: ≤0.02Ω
single Contact

TERMINAL
Material: Phosphor Bronze

HOUSING
Material: Nylon46, UL94V-0
