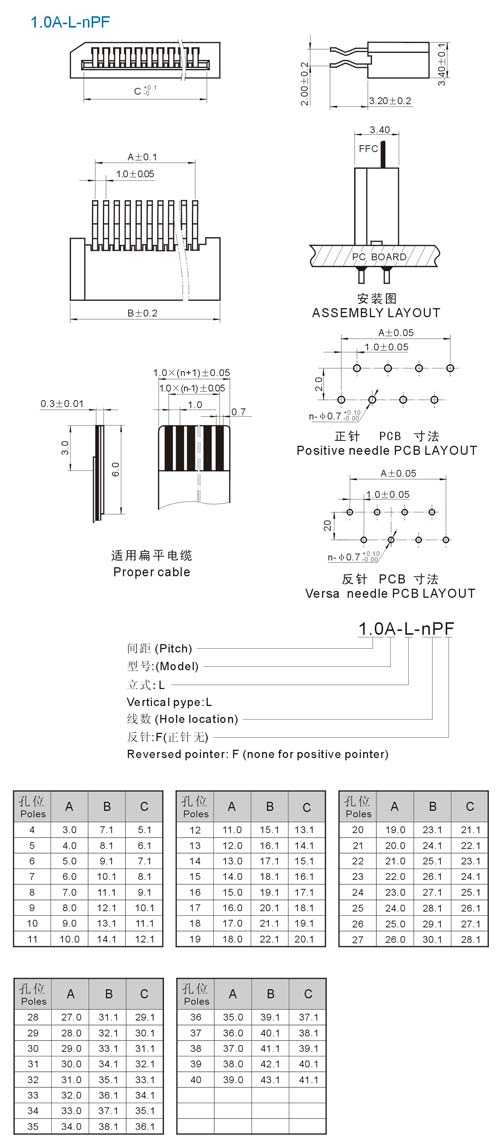

[1.0mm Pitch FPC connector(Dip,top entry w/o ZIF)]

SPECIFICATIONS
Poles: 4～40
Voltage rating : AC,DC,50V（200HZ）
Current rating: 0.5A,AC,DC
Withstand voltage: 500V AC/minute
Working Temperature: -25℃～+ 85℃
Insulation resistance: ≥800M Ω
Contact resistance: ≤0.02Ω
Single Contact

TERMINAL
Material: Phosphor Bronze

HOUSING
Material: Nylon46, UL94V-0

PACKAGE
Pipe Package
Box Package
