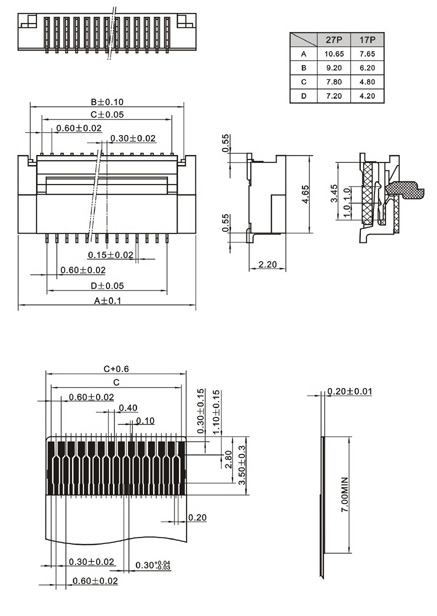

0.3mm pitch flat cable connector



Technical parameters:
Number of poles: 17, 27
Rated voltage: 50V DC / AC (rms)
Rated Current: 0.2A
Working temperature: -20 ℃ ~ + 85 ℃
Withstand voltage: 250V AC (rms)
Insulation resistance: ≥500M Ω
Contact resistance: Odd pole: ≤0.08Ω
Even-pole: ≤0.04Ω
Single contact
Materials:
Contacts: phosphor bronze with tin plating
Lug: phosphor bronze with tin plating
Plastic body: heat-resistant resin (UL94V-0)
Lock bar: heat-resistant resin (UL94V-0)
Packing:
Taping
Tube
Bag
